The Deepest Underground Labs Hunting Dark Matter

Thousands of feet underneath the surface of Earth, researchers are searching for something nobody can see. Dark matter, an invisible form of matter that does not reflect or emit light, has gravitational effects that may suggest it makes up a substantial part of all the matter in the universe. Researchers have buried dark-matter detector machines beneath enough rock to stack more than seven Eiffel Towers directly on top of each other. The deeper these detectors go, the more effectively the rock encapsulating them guards them against radiation that could overwhelm the tiny signals scientists hope the devices capture. Finding these missing pieces of the Universe's framework requires a very particular setup and absolute silence, because in these ultra-quiet, subterranean fortresses a new frontier of modern physics is actively being pioneered.

China's Deepest Underground Lab

The China Jinping Underground Laboratory sits beneath Jinping Mountain in Sichuan Province, with approximately 2,400 meters of rock overhead. That gives it the greatest rock overburden of any operating underground laboratory in the world. The facility is part of the tunnel system built through Jinping Mountain, allowing researchers and equipment to reach a place that would otherwise require descending more than a mile underground.

One of its major experiments has been PandaX-4T, which used about six tons of xenon in total, including a four-tonne sensitive target. Liquid xenon is particularly useful because a particle striking a xenon atom can produce a tiny flash of light followed by freed electrons. By measuring both signals, researchers can estimate where an interaction occurred and how much energy it deposited.

The goal is not simply to record strange events. Ordinary radioactivity, neutrons, neutrinos, and imperfections in detector materials can all imitate the signals scientists are searching for. PandaX, therefore, operated inside multiple layers of shielding while Jinping Mountain itself removed most of the cosmic-ray interference coming from above. PandaX-4T's run has now ended. The detector completed its staged operation on April 17, 2026, after accumulating 1,465 days of operation. The collaboration is shifting toward PandaX-20T, a much larger detector planned around a 20-tonne scale. Its increased size would give hypothetical dark-matter particles far more xenon atoms with which to collide.

A Network Beneath Canada and Italy

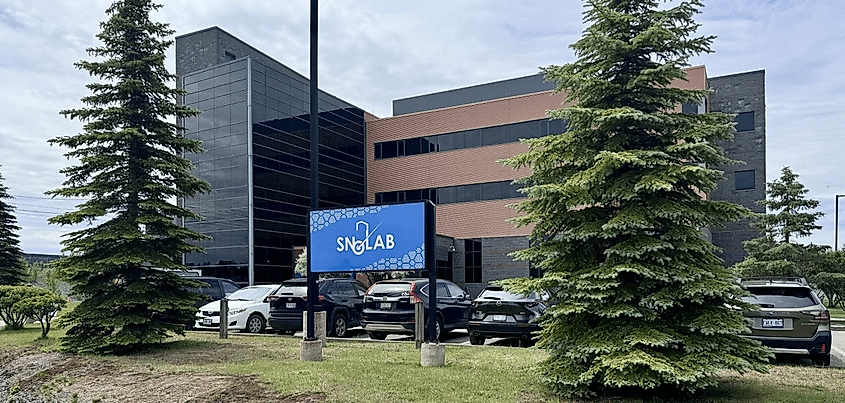

At SNOLAB near Sudbury, Ontario, researchers work roughly two kilometers underground in the Vale Creighton Mine. The rock above them reduces the cosmic-ray background by a factor of about 50 million. On the surface, cosmic-ray particles pass through people and objects constantly. At SNOLAB, the facility says a person could hold out a hand for months before a cosmic ray passed through it.

DEAP-3600 uses about 3.6 tons of liquid argon. When a particle interacts with an argon atom, the liquid can produce ultraviolet light that surrounding sensors detect. PICO takes a very different approach, using bubble-chamber technology in which a particle interaction can trigger the formation of a microscopic bubble.

Then there is SuperCDMS, which searches for especially lightweight dark-matter candidates using silicon and germanium crystals. Its operating temperature illustrates how extreme these laboratories can become. In March 2026, SuperCDMS reached temperatures of only tens of millikelvin, around a hundred times colder than outer space. At such temperatures, thermal vibrations are greatly reduced, making it possible to detect extraordinarily small deposits of energy inside the crystals.

Under Italy's Gran Sasso Massif

Italy's Gran Sasso National Laboratory takes advantage of approximately 1,400 meters of mountain overhead. The rock reduces the cosmic-ray flux to roughly one-millionth of its surface level. Beyond the mountain lie three enormous experimental halls, each about 100 meters long, large enough to contain detectors that would be difficult to hide inside an ordinary laboratory. One of them is XENONnT, another experiment built around ultra-pure liquid xenon. It uses about 8.6 tons of xenon overall, with 5.9 tons inside its active detector. The xenon is kept at approximately -95 degrees Celsius.

If a particle strikes a xenon nucleus, the detector can capture a prompt flash of light and a second signal created by freed electrons. Those signals allow researchers to reconstruct the interaction in three dimensions. Events close to the walls can then be rejected more easily because they are more likely to come from radioactive contamination than from dark matter passing through the detector. Even 1,400 meters of mountain is not enough protection by itself.

Trace radioactive contaminants inside the detector can create their own signals. Radon is especially troublesome because its decay products can enter the xenon and imitate rare events. XENONnT therefore uses a cryogenic distillation system to continually remove radon. By 2025, the collaboration had reduced radon-related radioactivity to four times below its previous record level. At this scale, scientists are effectively fighting individual radioactive atoms.

Nearly a Mile Beneath South Dakota

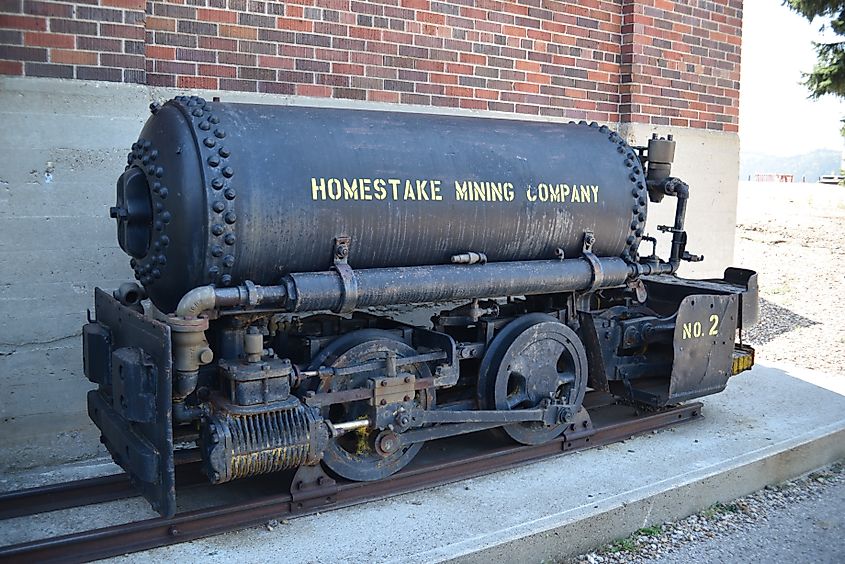

Beneath the Black Hills of South Dakota, the Sanford Underground Research Facility occupies the former Homestake Gold Mine. Its Davis Campus lies 4,850 feet underground, making it the deepest underground science laboratory in the United States. The location once drew miners searching for gold. Today, researchers descend through the same mine to look for matter that has never been seen directly.

The facility is home to LUX-ZEPLIN, better known as LZ, one of the world's most sensitive direct dark-matter experiments. LZ contains about 10 tons of ultra-pure liquid xenon overall, with seven tons forming its active target. The detector sits inside additional layers of liquid scintillator and approximately 70,000 gallons of purified water that help identify neutrons, gamma rays, and cosmic particles before they can be mistaken for something more exotic. The liquid xenon is kept at roughly -160 degrees Fahrenheit. Hundreds of sensitive light detectors watch it continuously.

A dark-matter particle, if it interacts with xenon in the expected way, might strike only one nucleus and leave behind an almost unimaginably small amount of energy. Most of the time, LZ is therefore not looking for something spectacular. It is trying to determine whether one tiny flash among years of data is different from everything ordinary physics can produce.

One Strange Event Is Not Yet a Discovery

On September 1, 2026, the LZ collaboration announced that it had recorded one particle interaction that researchers have difficulty explaining with their known background models. The event produced a nuclear recoil with an estimated energy of about 248 kiloelectronvolts. That is an extremely small amount of energy on a human scale, but inside LZ it landed in a region where ordinary background events were expected to be rare.

Scientists tested the result across several possible dark-matter models. After accounting for the fact that they searched across multiple possibilities, the anomaly reached a global statistical significance of 2.6 sigma. That translates to roughly a 0.5% probability that known backgrounds would produce something at least this unusual.

Particle physicists generally demand about five sigma before claiming a discovery, a much tougher standard. One event therefore cannot establish that LZ has found dark matter. An unexpected background process, an imperfect model, or a statistical fluctuation could still explain it. Dark matter is also among the possibilities. That makes the next data unusually important. If LZ records more events with similar characteristics, the statistical case could strengthen. If nothing similar appears, the anomaly may fade into the long history of tantalizing signals that disappeared as experiments became more precise.

Waiting For The Universe To Hit Back

The deepest laboratories on Earth have turned entire mountains into shields, cooled detectors to temperatures far below those of deep space, and purified materials until even trace radioactive atoms matter. Yet dark matter itself remains unidentified. The September 2026 LZ event is a reminder of how close and how far away the answer may be. One microscopic collision nearly a mile beneath South Dakota is unusual enough to demand attention, but not convincing enough to rewrite physics.

Now the detector has to keep watching. If that single event was dark matter, more should eventually follow. Somewhere beneath kilometers of rock, scientists may already have built a machine capable of seeing the invisible 85% of matter around us. The remaining question is whether the universe will give it another signal.
